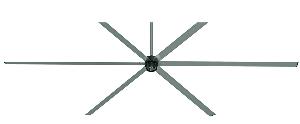

Fan, AirVolution D 780 - 24', 380V-600V
Item Number: EGY06000892 - Supplier: ENERGY LOGIC LLC
Description
Utilizing the next generation motor design, this eliminates the gearbox, resulting in reduced noise, zero maintenance and easy installation. Wash down rated for indoor/outdoor use.
Warranty
50,000 hour warranty.
Product Specifications
- Motor System Shipping Dimensions: 29 x 30 x 26 in.
- Motor Shipping Weight: 351 lbs.
- Blade Shipping Dimensions: 144 x 25 x 15 in.
- Blade Shipping Weight : 197 lbs.
- Hanging Weight : 213 lbs.
- Motor Type : Brushless, Permanent Magnet, Transverse Flux DC
- Drive Train: Gearless Direct Drive
- Equivalent Horsepower Rating: 2.1 HP
- Max Operating Temperature: 140°F
- Power Source High Range: 1-phase or 3-phase (380-600) VAC +/- 10%, 50-60 Hz
- Fire & Sprinkler: NFPA Compliant
- Wash Down Duty Rating: IP66
- Number of Airfoils : 6
- Max Displacement Forward: 346,000 CFM
- Max Displacement Reverse: 256,000 CFM
